Ava 360
Ava 360
Ava 360 Mobile
  • Edge
    analytics
  • Large
    high-quality lens
  • Image sensor
    12MP
  • AI audio event classification
  • 360° IR
    coverage
  • Indoor, outdoor,
    and rugged
specs-360-header--2x

Ava 360
security camera

  • Lens

    Aperture: ƒ/2.0
    Fixed focus
    Focus distance: 0.5m - ∞

  • IR night vision

    Automatic night mode
    IR-cut filter
    IR range: 20m
    850 nm IR LED

  • Minimum illumination in color mode

    0.4lux

  • Dynamic range

    Multi-exposure line-based HDR

  • Field of view

    >180°

  • Maximum resolution and frame rate

    3000x3000@30fps

  • Video compression

    H.264

  • Audio

    Microphone array (4x microphones)
    AI audio event classification
    Audio source localization

  • Security

    Factory-installed certificates
    No default passwords
    Mandatory access authentication
    HTTPS/TLS encryption

  • Network protocols

    IPv4, HTTPS, TLS, DNS, mDNS, DNS-SD, NTP, RTSP,

    RTP, RTCP, CMP, DHCP, ARP
    Streaming: RTP/UDP, RTP/RTSP/, HTTPS/TCP

  • Power source

    PoE+ (802.3at Type 2)
    For installation only: USB-C (1.5A mode)

  • Power consumption

    Typical: 5 W
    Max without heater: 12.95 W
    Max with heater: 23 W

  • Storage

    MicroSD
    SDXC UHS-I

  • Connection

    802.3ab 10/100/1000 Gigabit Ethernet
    USB-C for preview and setup

  • Installation aid

    Automatic wall and ceiling detection. Flexible bracket, mounts to standard back boxes. Refer to technical drawing.

  • Impact resistance

    IK10 (IEC/EN 62262)

  • Water protection

    IP66 (IEC/EN 60529)

  • Temperature

    Operating: -40°C to +50°C
    Storage: -40°C to +60°C
    Heater: 9.6W

  • Physical characteristics

    Dimensions: 152x152x77mm
    Weight: 1.1 kg
    Body: Aluminum

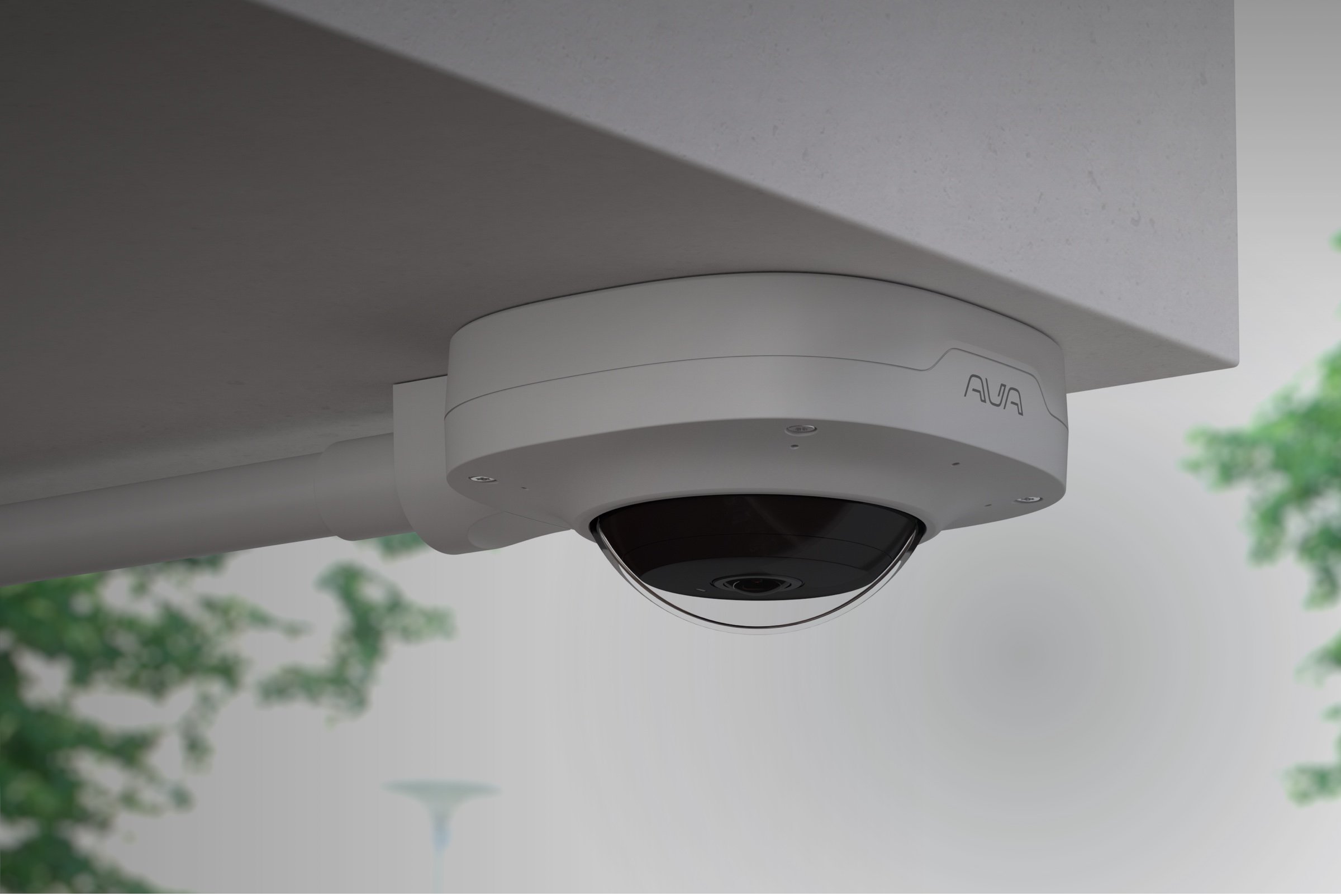

Cloud-connected 360 security cameras

The AI-powered 360 panoramic security camera is ideal for locations that require coverage in all directions. Installed either indoors or outdoors, our panoramic camera captures wide scenes in high resolution in even the harshest of environments and with low light. The 360 comes with built-in intelligent AI analytics, optional storage with up to 60 days retention, and integrates seamlessly with the Ava Aware Cloud video management system

Say goodbye to centralized storage and analytics servers that need to be separately purchased, configured, and maintained. Unlike traditional CCTV cameras, the 360 is easy to install and online within minutes. Its powerful video and audio analytics enable you to be truly proactive and detect threats before they turn into incidents. The 360 series is designed and developed in Norway and the UK.

  1. Vandal-resistant (IK 10) & outdoor-ready (IP66), perfect for any highly exposed deployment.
  2. The acoustic sensor delivers integrated directional audio analytics that identifies audio events and the direction to the source.
  3. High resolution, exceptional low light performance, and multi-exposure line-based HDR to capture every detail in the most challenging light conditions, irrespective of the environment.
  4. Unparalleled video surveillance with AI-based computer vision built on top of next-generation secure boot.
  5. Innovative mounting bracket and simple cable management, ideal for discrete installations or areas with reduced space.

The 360 panoramic series advantage

Easy installation, use, and management

Easy installation, use, and management

video and audio analytics

AI video and directional audio analytics

cloud-connected deployment

Cloud-native deployment

On-camera audio & video analytics

Monitor video smarter with threat detection in real-time

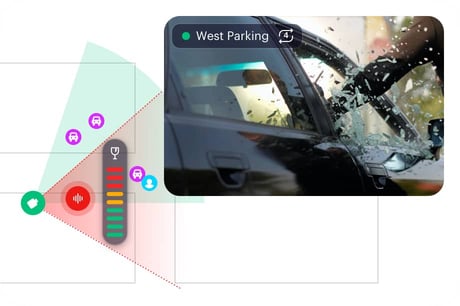

The 360 series integrates advanced intelligence via image recognition, machine learning, and acoustics to automatically identify events highlighted in the video feed or trigger real-time notifications directly in the app or third-party instant communication systems. It enables security teams to find events and objects faster and organizations to be more proactive, preventing threats from becoming incidents. The cameras also identify specific sound patterns, such as screaming, gunshots, breaking glass, smoke alarms, car alarms, ultrasound, or loud noises, to determine the type of sound and its direction.

Deploy and add cameras online in minutes

One-click configuration

It’s never been easier to add and configure security cameras to a deployment. Our plug-and-play configuration removes the need for usernames and passwords, pre-configuration set-up, or default settings. You can also scan the unique QR codes on the 360 cameras to onboard them to the Aware Cloud video management system. What’s more, 360 is equipped with an innovative mounting bracket and simple cable management, making it ideal for discrete installations or areas with reduced space.

Panoramic dewarping

Set your preferred panoramic view

Create views from wide-angle cameras so that it’s easier to see the details. Depending on how 360 is mounted, see the camera footage as a globe view, a single 16:9 view, or as two separate pictures, each representing half of the camera’s field of view.

img_smart-recording

Enjoy a reliable and intelligent bandwidth optimization

Are you worried about the storage costs for your video footage while preserving all the forensic details you might need to solve cases? Dome is an intelligent video security camera that uses analytics to determine what video to record. It allows users to configure different resolutions to be used when our machine learning analytics consider the video to be either interesting or not. Also, the camera can dynamically vary the bitrate within a stream based on object detection. This allows it to show the areas of interest more clearly. Together, these mean you need less storage and less bandwidth on playback while keeping the quality where and when you need it.

always-on security

Stay protected from cyberattacks

Cybersecurity is no longer a concern but a built-in feature of the 360 series. With factory-installed certificates, camera passwords set at initialization, and end-to-end encryption, our cameras are the most secure on the market. The 360 is equipped with a Trusted Platform Module (TPM) to provide secure encryption key storage for each camera. Software upgrades are seamless and instant, with continued access to regular automated system performance checks. What's more, 360 cameras are built and designed in Europe, America, or Taiwan.

Enhance visibility with powerful AI features and valuable insights

map-view

Map view with Smart Presence™

Operators can add maps of all your locations to gain more situational awareness and insights. Each map can be configured and includes camera and alarm views, along with the ability to track people and objects as they move on your premises.

occupancy-counting

Occupancy counting

With occupancy counting, business analysts, security operators, and administrators can monitor large facilities and keep a rolling total of the current occupancy of people and vehicles in defined locations, enabling, e.g., staff and stock optimization, social distancing, and more.

aware-heatmap-video-view

Heatmaps

Heatmaps are ideal for gaining more insights into retail, healthcare, schools and other educational facilities, public venues, hospitality locales, public transport, or federal government premises. The tool provides an enhanced awareness of customer behavior, dwell times and congestions, transportation flows, suspicious activities, and more.

smart-search

Smart Search™

Reduce forensic investigation time and gain efficiency and accuracy with the same number of operators using machine learning-powered searching. Search by event and similarity to perform appearance and image detection. With Smart Search, it is possible to quickly comb through countless hours of video across your entire implementation.

real-time-alerts

Alerts and notifications in real time

Use rule-based templates to define notification scenarios where you will be alerted once a specific event occurs, such as loitering, line crossing, fire exit access, and more.

Certifications and awards

  • ISO 27001 certified

    This certification ensures our commitment to good security culture, processes, and technology.

    Blog post
  • Red Dot Award Product Design winner

    Ava Cameras won the Red Dot Product Design Award, recognizing high design quality by standing out from established norms in the video surveillance market with a blend of precise shapes and softened surfaces.

    Press release
  • Red Dot Award Smart Product winner

    The Ava Cloud Video Security solution won an award in the “Smart Products” category, demonstrating high design quality and an innovative approach to video security solutions.

    Press release

Contact sales for questions or a live video security demo
