Ava Quad
specifications

  • Image sensor size format

    1/2.7”

  • Lens

    Focal length: 3.7 ~ 7.7 mm
    Aperture: ƒ/1.9-ƒ/2.9
    Remote zoom and focus
    P-iris

  • IR night vision

    Automatic night mode
    IR-cut filter
    Individually controlled IR LEDs
    850 nm IR LED

  • Field of view

    81° - 39° Horizontal
    60° - 29° Vertical

  • Maximum resolution & Frame rate

    2592x1944@30fps per sensor

  • Dynamic range

    Multi-exposure line-based HDR

  • Video compression

    H.265, H.264, Motion JPEG

  • Audio

    Microphone
    Audio classification

  • Security

    Trusted Platform Module (TPM 2.0)
    Factory-installed certificates
    No default passwords
    Mandatory access authentication
    HTTPS/TLS encryption

  • Network protocols

    IPv4, HTTPS, TLS, DNS, mDNS, DNS-SD, NTP, RTSP, RTP, RTCP, ICMP, DHCP, ARP
    Streaming: RTP/UDP, RTP/RTSP/HTTPS/TCP

  • Power source

    IEEE 802.3at PoE Class 4 (PoE+)

  • Power consumption

    Max: 25.5/13.84 W (IR on/off)

  • Storage

    MicroSD, SDXC UHS-I

  • Connection

    802.3ab 10/100/1000 Gigabit Ethernet

  • Impact resistance

    IK10 (IEC/EN 62262)

  • Ingress protection

    IP66 (IEC/EN 60529)

  • Temperature

    Storage & Operating: -40C to +60C*
    *IR not available > 50°C

  • Physical characteristics

    Dimensions: Ø 275x118 mm
    Weight: 2.7 kg
    Body: Aluminum

Cloud Ava Quad security cameras with exceptional coverage

Get more with less with the AI-powered Ava Quad cloud video security camera. Its adjustable sensors and zoom lenses deliver complete coverage to up to four different areas over wide outdoor or indoor areas, such as large crossroads, parking lots, campuses, and stadiums. The Quad security camera features four independent 5MP sensors with multi-exposure line-based HDR capabilities that allow it to deliver excellent image quality in areas with high contrast lighting. The Quad multisensor camera includes embedded AI analytics, built-in storage of up to 30 days of retention, and integrates seamlessly with the Ava Aware Cloud video management system.

Say goodbye to centralized storage and analytics servers that must be purchased separately, configured, and maintained. Unlike traditional CCTV security cameras, Ava Quad is easy to install and get online within minutes. Its powerful analytics enable you to be truly proactive and detect threats before they turn into incidents. What’s more, the camera stays up to date and secure and gets better over time with software updates from the cloud.

  1. Vandal-resistant (IK10) & outdoor-ready (IP66), perfect for any highly-exposed installation.
  2. High resolution, exceptional low light performance, and multi-exposure line-based HDR to capture every detail in the most challenging light conditions, irrespective of the environment.
  3. Unparalleled image processing, high-resolution video encoding, and computer vision via Ambarella’s SoC.

The Quad series advantage

icons-13

Easy installation, use, and management

viedo and audio analytics

AI video and audio analytics

cloud

Cloud-native deployment

7 remote access

Get full cloud flexibility and security for 24/7 remote access

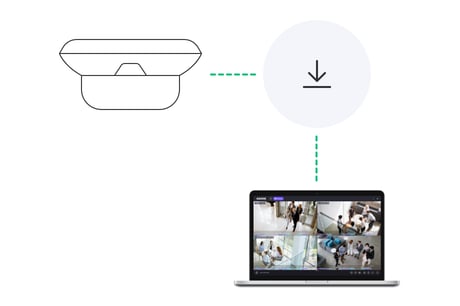

The Quad security camera marks a premier in the security space, being the first cloud multisensor camera. The cloud brings easy remote access, flexible storage that scales with your business, and easy maintenance without ever worrying about NVRs, DVRs, or hardware incompatibility. The Quad’s software is always up to date and gets better over time with software updates from the cloud.

Install and deploy in minutes

Install and deploy in minutes

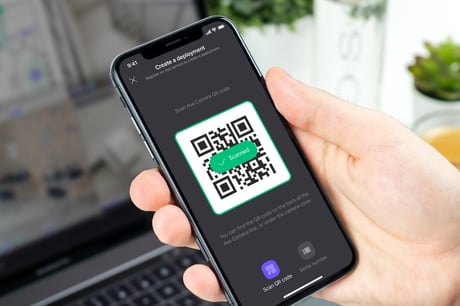

It’s never been easier to add and configure security cameras to a deployment. Our plug-and-play configuration removes the need for usernames and passwords, pre-configuration set-up, or default settings. Its single IP connection allows for a quicker installation. You can also scan the unique QR codes on Ava Quad multisensor cameras to onboard them to the Aware Cloud platform.

Monitor video smarter

Monitor video smarter

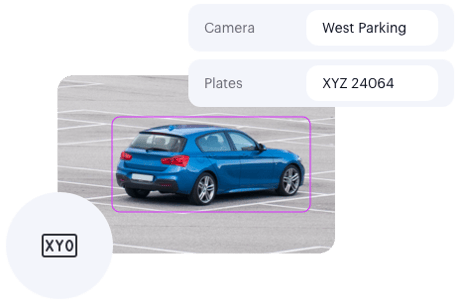

The Quad camera features a single processor handling all four sensors, which brings advanced intelligence through image recognition and machine learning. Detect anomalies in real time and receive proactive rules-based notifications before threats escalate. Access smart features such as people and vehicle counting and heatmaps to get more insights into how your facilities and spaces are used. Use license plate recognition and perform improved similarity searches based on license plate data for more accurate results.

Deter incidents efficiently day and night

Prevent incidents day and night

The Quad video security camera has robust, high-quality materials and is vandal-resistant and ideal for securing locations such as airports, streets, intersections, parking lots, public transport stations, and more. It features four 5MP sensors with IR illuminators, WDR Pro technology, and a removable IR-cut filter that offer you complete coverage in high-quality video even in full sunlight, low-light conditions, or complete darkness. What’s more, the Quad multisensor camera is IP66 and IK10 rated, making it the ideal solution for bringing focus to four different areas, where you need to.

Enjoy a reliable and intelligent bandwidth optimization

Optimize bandwidth intelligently

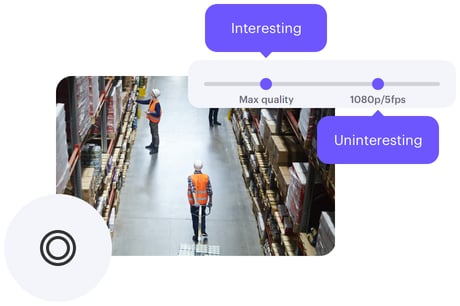

Worried about the storage costs for your video security footage while preserving all the forensic details you might need to solve cases? The Quad is an intelligent video security camera that uses analytics to determine what video to record. It allows users to configure different resolutions when our machine learning analytics consider the video to be either interesting or not. In addition,  the camera can dynamically vary the bitrate within a stream based on object detection. This allows it to show the areas of interest more clearly. Thus, you need less storage and less bandwidth on playback while keeping the quality where and when you need it.

Monitor video smarter in real time 2

Stay protected from cyberattacks

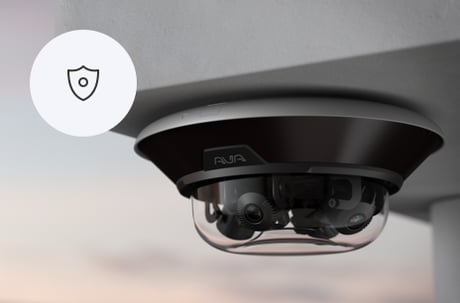

Cybersecurity is a built-in feature of Ava Quad. All the Quad multisensor cameras include camera passwords set at initialization, factory-installed certificates, and end-to-end encryption, our cameras are some of the most secure on the market. Additionally, the security cameras equipped with a Trusted Platform Module (TPM) to provide a secure encryption key storage for each device.


Enhance visibility with powerful AI features and valuable insights

Map view with Smart Presence™

Operators can add maps of all your locations to gain more situational awareness and insights. Each map can be configured and includes camera and alarm views, along with the ability to track people and objects as they move on your premises.

Occupancy counting

With occupancy counting, business analysts, security operators, and administrators can monitor large facilities and keep a rolling total of the current occupancy of people and vehicles in defined locations, enabling, e.g., staff and stock optimization, social distancing, and more.

Heatmaps

Heatmaps are ideal for gaining more insights into retail, healthcare, schools and other educational facilities, public venues, hospitality locales, public transport, or federal government premises. The tool provides an enhanced awareness of customer behavior, dwell times and congestions, transportation flows, suspicious activities, and more.

Smart Search™

Reduce forensic investigation time and gain efficiency and accuracy with the same number of operators using machine learning-powered searching. Search by event and similarity to perform appearance and image detection. With Smart Search, it is possible to quickly comb through countless hours of video across your entire implementation.

Timeline with Smart Presence™

The rich playback timeline in Aware’s video view provides thumbnail-based browsing of video and highlights people, vehicles, and overall motion separately. Your operators gain a better, clearer understanding of different events captured by the camera.

Certifications and awards

  • ISO 27001 certified

    This certification ensures our commitment to good security culture, processes, and technology.
